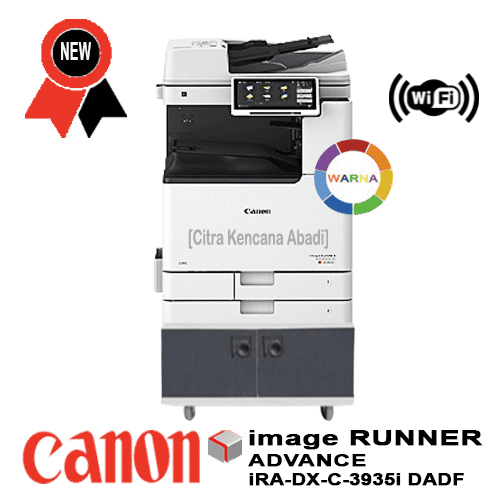

CANON IRA DX C 3935i DADF

Original price was: Rp158,830,000.Current price is: Rp129,500,000.

Main Unit

Machine Type A3 Colour Laser Multifunctional
Core Functions Print, Copy, Scan, Send, Store and Optional Fax
Processor Canon Dual Custom Processor (Shared)
Control Panel 10.1 inch TFT LCD WSVGA Colour Touch panel
Memory
Standard: RAM 3.5 GB
Main CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB (reserved for image processing)
Storage Standard: (SSD) 256 GB
Optional: (SSD) 1 TB
Interface Connection NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T,
Optional: Wireless LAN (IEEE 802.11 b/g/n)OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm) Standard: 1,200 sheets
Multi-purpose Tray: 100 sheets
2x Standard Cassette: 550 sheetsMaximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)
Supported Media Types Multi-purpose Tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, PostcardUpper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, PostcardLower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard
Supported Media Sizes Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL
Supported Media Weights Multi-purpose Tray: 52 to 300 gsm*5
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm
Warm-up Time
(Quick start mode: ON)
Quick Startup Mode: 4 seconds or less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7
Dimensions (W x D x H) With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm
Installation Space (W x D) Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + paper cassette opened)Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
Weight
Including Toner
With Platen Cover-Y3: Approx. 73 kg
With DADF-BA1: Approx. 79 kg
With Single Pass DADF-C1: Approx. 86 kg

Print Specifications

Print Speed (BW) iR-ADV DX C3935i:
1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 23 ppm (A4R)iR-ADV DX C3930i:
1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3926i:
1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3922i:
1-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi) 1,200 x 600
1,200 x 1,200 (half-speed)
Page Description Languages Standard: UFR II, PCL6
Option: Adobe® PostScript®3™
Direct Print (RUI) PDF, EPS, TIFF/JPEG, XPS
Printing from Mobile and Cloud Applications AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
OS Standard Printing Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS
Fonts PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*9
Operating System UFR II: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PCL: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022

PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PPD: Windows® 10/11, macOS (10.13 or later)

Copy Specifications

Scan Specifications

Type Standard: Colour Platen
Optional: Platen Cover-Y3, Single Pass DADF-C1*10 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
DADF: Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm) Single Pass DADF-C1: Up to 200 Sheets
DADF-BA1: Up to 100 Sheets
Acceptable Originals and Weights Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
Single Pass DADF-C1*11:
1-sided scanning: 38 to 220 gsm (BW/CL)
2-sided scanning: 38 to 220 gsm (BW/CL)

DADF-BA1:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

Supported Media Sizes Platen: Max. scanning size: 297.0 x 431.8 mm

Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL, A4) Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)DADF-BA1:
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy)
Scan Resolution (dpi) Scan for Copy: 600 x 600

Scan for Send:
(Push) 600 x 600 (SMB/FTP/WebDAV/IFAX)
(Pull) 600 x 600

Scan for Fax: 600 x 600

Pull Scan Specifications Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022

Send Specifications

Fax Specifications

Maximum Number of Connection Lines 2
Modem Speed Super G3: 33.6 kbps
G3: 14.4 kbps
Compression Method MH, MR, MMR, JBIG
Resolution (dpi) 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending/Recording Size Sending: A3, A4, A4R, A5*13, A5R*13, B4, B5*14, B5R*13
Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R
Fax Memory Up to 30,000 pages (2,000 jobs)
Speed Dials Max. 200
Group Dials/Destinations Max. 199 dials
Sequential Broadcast Max. 256 addresses
Memory Backup Yes

Store Specifications

Box (Number supported) 100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 10,000 Pages (2,000 jobs) Stored
Advanced Box Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 10/11
Concurrent Connections (Max.): SMB: 64, WebDAV: 3
Advanced Box Available Disc Space Standard: 16 GB
(With option: Max. 480 GB)
Advanced Box Features Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security Specifications

Authentication and Access Control User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW*15 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document Security Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*16), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network Security TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Box, Scan and Send -Virus Concerns for E-mail Reception)
Device Security Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP)
Device Management and Auditing Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Environmental Specifications

Operating Environment Temperature: 10 to 30ºC
Humidity: 20 to 80% RH (Relative Humidity)
Power Source 220-240V 50/60Hz 5A
Power Consumption Maximum: Approx. 1,500 W
Sleep Mode: Approx. 0.8 W*17

Consumables

Software and Printer Management

Paper Supply Options

Output Options*18

Inner 2way Tray-M1 Tray Capacity (with 80 gsm paper)
Upper tray: A4, A5, A5R, A6R, B5, B5R: 100 sheets
SRA3, A3, A4R, B4: 50 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: Up to 250 sheets
SRA3, A3, A4R, B4: Up to 100 sheetsPaper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: 0.7 kg
Copy Tray-T2 Capacity (with 80 gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 75 sheets
Dimensions (W x D x H): 444 x 373 x 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg
Inner Finisher-L1 Tray Capacity (with 80 gsm paper):
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: Approx. 500 sheets
SRA3, A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
Envelope: 10 sheetsPaper Weight: 52 to 300 gsmStaple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: Approx. 40 sheets (80 gsm)Dimensions (W x D x H): 587 x 525 x 225 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 9.1 kg
Inner 2/3 Hole Puncher-D1 (Requires Inner Finisher-L1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Three holes A3, A4, B4, B5
Inner 2/4 Hole Puncher-D1 (Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Four holes A3, A4
Staple Finisher-AE1 Tray Capacity (with 80 gsm paper):
Upper Tray:
A4, A5, A5R, A6R, B5: Approx. 250 sheets
SRA3, A3, A4R, B4, B5R: Approx. 125 sheets
Lower Tray: A4, A5, A5R, B5: 3,000 sheets
SRA3, A3, A4R, B4, B5R: 1,500 sheets
A6R: 250 sheets
Envelope: Monarch 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheetsPaper Weight:
Upper Tray: 52 to 256 gsm
Lower Tray: 52 to 300 gsmStaple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: 50 sheets (52 to 90 gsm)Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended)
Weight: Approx. 30.0 kg
Booklet Finisher-AE1 (Includes the above Staple Finisher-AE1 basic staple specifications.)
Saddle Stitch paper size: A3, A4R, B4
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)
Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm)
Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended)
Weight: Approx. 53.0 kg
2/3 Hole Puncher Unit-A1 (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Three holes A3, A4, B4, B5
2/4 Hole Puncher Unit-A1 (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Four holes A3, A4

Hardware Accessories

Card Readers IC Card Reader Box for Numeric Keypad-A1
Others Single Pass DADF-C1
DADF-BA1
Platen Cover-Y3
Utility Tray-B1
Numeric Keypad-A2
Media Adjustment Kit-A1

System and Controller Options

Other Options

Description

More Info CANON IRA DX C 3935i DADF :
– Harga belum termasuk Ongkir
– Pengiriman dari tokopedia hanya berupa Invoice
– Untuk biaya Ongkir harap menghubungi kami
– Free ongkir wilayah jabodetabek maks 40 km dari toko kami

Chat langsung ya ke kontak kami:

Bisa Beli Langsung di toko offline kita:
Jl. Batu Ceper Raya No. 2 D Jakarta Pusat
Senin-Jumat: 08.00 – 17.00 WIB
Minggu/Tanggal Merah : Tutup

Cek Produk kami yang lain :
CANON IRA DX C 3935i DADF

CANON IRA DX C 3930i DADF

CANON IRA DX C 3926i DADF

CANON IRA DX C 3922i DADF
Fitur Produk:

– A3 Colour Laser Multifunctional
– Kecepatan cetak hingga 30 halaman per menit
– Print, Copy, Scan, Send, Store and Optional Fax
– 10.1 inch TFT LCD WSVGA Colour Touch panel

Penting untuk di baca terlebih dahulu ketentuan di bawah ini:
Produk yang kami kirim sudah kami cek terlebih dahulu kondisi fisiknya dan sudah kami pastikan di packing dengan aman agar meminimalisir kerusakan pada saat pengiriman. Ajukan penggunaan palet kayu untuk memastikan agar produk anda lebih aman selama pengiriman. Pastikan anda menyertakan video unboxing ketika produk sampai untuk mengajukan komplain jika ada kerusakan produk karena komplain tidak akan kami terima (layani) tanpa disertai video unboxing.

Syarat & Ketentuan

Main Unit

Machine Type A3 Colour Laser Multifunctional
Core Functions Print, Copy, Scan, Send, Store and Optional Fax
Processor Canon Dual Custom Processor (Shared)
Control Panel 10.1 inch TFT LCD WSVGA Colour Touch panel
Memory
Standard: RAM 3.5 GB
Main CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB (reserved for image processing)
Storage Standard: (SSD) 256 GB
Optional: (SSD) 1 TB
Interface Connection NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T,
Optional: Wireless LAN (IEEE 802.11 b/g/n)OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm) Standard: 1,200 sheets
Multi-purpose Tray: 100 sheets
2x Standard Cassette: 550 sheetsMaximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)
Supported Media Types Multi-purpose Tray:
Thin, Plain, Heavy, Recycled, Coated*1, Colour, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Envelope, PostcardUpper Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*2, PostcardLower Cassette:
Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*3, Postcard
Supported Media Sizes Multi-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mmUpper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL
Supported Media Weights Multi-purpose Tray: 52 to 300 gsm*5
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm
Warm-up Time
(Quick start mode: ON)
Quick Startup Mode: 4 seconds or less*6
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*7
Dimensions (W x D x H) With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm
Installation Space (W x D) Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + paper cassette opened)Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette opened)
Weight
Including Toner
With Platen Cover-Y3: Approx. 73 kg
With DADF-BA1: Approx. 79 kg
With Single Pass DADF-C1: Approx. 86 kg

Print Specifications

Print Speed (BW) iR-ADV DX C3935i:
1-sided: Up to 35 ppm (A4), Up to 17 ppm (A3), Up to 23 ppm (A4R)iR-ADV DX C3930i:
1-sided: Up to 30 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3926i:
1-sided: Up to 26 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)iR-ADV DX C3922i:
1-sided: Up to 22 ppm (A4), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi) 1,200 x 600
1,200 x 1,200 (half-speed)
Page Description Languages Standard: UFR II, PCL6
Option: Adobe® PostScript®3™
Direct Print (RUI) PDF, EPS, TIFF/JPEG, XPS
Printing from Mobile and Cloud Applications AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
OS Standard Printing Android, Windows® 10/11, Chrome OS, macOS (11.2.2 or later), iOS (15.2 or later), iPadOS
Fonts PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*9
Operating System UFR II: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PCL: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022

PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, macOS (10.13 or later)

PPD: Windows® 10/11, macOS (10.13 or later)

Copy Specifications

Scan Specifications

Type Standard: Colour Platen
Optional: Platen Cover-Y3, Single Pass DADF-C1*10 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
DADF: Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm) Single Pass DADF-C1: Up to 200 Sheets
DADF-BA1: Up to 100 Sheets
Acceptable Originals and Weights Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
Single Pass DADF-C1*11:
1-sided scanning: 38 to 220 gsm (BW/CL)
2-sided scanning: 38 to 220 gsm (BW/CL)

DADF-BA1:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

Supported Media Sizes Platen: Max. scanning size: 297.0 x 431.8 mm

Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL, A4) Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)DADF-BA1:
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy)
Scan Resolution (dpi) Scan for Copy: 600 x 600

Scan for Send:
(Push) 600 x 600 (SMB/FTP/WebDAV/IFAX)
(Pull) 600 x 600

Scan for Fax: 600 x 600

Pull Scan Specifications Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022

Send Specifications

Fax Specifications

Maximum Number of Connection Lines 2
Modem Speed Super G3: 33.6 kbps
G3: 14.4 kbps
Compression Method MH, MR, MMR, JBIG
Resolution (dpi) 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending/Recording Size Sending: A3, A4, A4R, A5*13, A5R*13, B4, B5*14, B5R*13
Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R
Fax Memory Up to 30,000 pages (2,000 jobs)
Speed Dials Max. 200
Group Dials/Destinations Max. 199 dials
Sequential Broadcast Max. 256 addresses
Memory Backup Yes

Store Specifications

Box (Number supported) 100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 10,000 Pages (2,000 jobs) Stored
Advanced Box Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 10/11
Concurrent Connections (Max.): SMB: 64, WebDAV: 3
Advanced Box Available Disc Space Standard: 16 GB
(With option: Max. 480 GB)
Advanced Box Features Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security Specifications

Authentication and Access Control User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW*15 (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document Security Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*16), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network Security TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Box, Scan and Send -Virus Concerns for E-mail Reception)
Device Security Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Checking MFD Software Integrity (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP)
Device Management and Auditing Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting

Environmental Specifications

Operating Environment Temperature: 10 to 30ºC
Humidity: 20 to 80% RH (Relative Humidity)
Power Source 220-240V 50/60Hz 5A
Power Consumption Maximum: Approx. 1,500 W
Sleep Mode: Approx. 0.8 W*17

Consumables

Software and Printer Management

Paper Supply Options

Output Options*18

Inner 2way Tray-M1 Tray Capacity (with 80 gsm paper)
Upper tray: A4, A5, A5R, A6R, B5, B5R: 100 sheets
SRA3, A3, A4R, B4: 50 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: Up to 250 sheets
SRA3, A3, A4R, B4: Up to 100 sheetsPaper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: 0.7 kg
Copy Tray-T2 Capacity (with 80 gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 75 sheets
Dimensions (W x D x H): 444 x 373 x 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg
Inner Finisher-L1 Tray Capacity (with 80 gsm paper):
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: Approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: Approx. 500 sheets
SRA3, A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
Envelope: 10 sheetsPaper Weight: 52 to 300 gsmStaple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: Approx. 40 sheets (80 gsm)Dimensions (W x D x H): 587 x 525 x 225 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 9.1 kg
Inner 2/3 Hole Puncher-D1 (Requires Inner Finisher-L1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Three holes A3, A4, B4, B5
Inner 2/4 Hole Puncher-D1 (Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Four holes A3, A4
Staple Finisher-AE1 Tray Capacity (with 80 gsm paper):
Upper Tray:
A4, A5, A5R, A6R, B5: Approx. 250 sheets
SRA3, A3, A4R, B4, B5R: Approx. 125 sheets
Lower Tray: A4, A5, A5R, B5: 3,000 sheets
SRA3, A3, A4R, B4, B5R: 1,500 sheets
A6R: 250 sheets
Envelope: Monarch 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheetsPaper Weight:
Upper Tray: 52 to 256 gsm
Lower Tray: 52 to 300 gsmStaple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: 50 sheets (52 to 90 gsm)Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended)
Weight: Approx. 30.0 kg
Booklet Finisher-AE1 (Includes the above Staple Finisher-AE1 basic staple specifications.)
Saddle Stitch paper size: A3, A4R, B4
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)
Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm)
Dimensions (W x D x H): 637 x 623 x 1,021 mm (when the extension tray is extended)
Weight: Approx. 53.0 kg
2/3 Hole Puncher Unit-A1 (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Three holes A3, A4, B4, B5
2/4 Hole Puncher Unit-A1 (Requires either the Staple Finisher-AE1 or Booklet Finisher-AE1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R
Four holes A3, A4

Hardware Accessories

Card Readers IC Card Reader Box for Numeric Keypad-A1
Others Single Pass DADF-C1
DADF-BA1
Platen Cover-Y3
Utility Tray-B1
Numeric Keypad-A2
Media Adjustment Kit-A1

System and Controller Options

Other Options
